LUTHERAN CHURCH OF THE GOOD SHEPHERD
Brooklyn, New York


Opus 28

GREAT

16
8
8
4
2 2/3
2
1 3/5
IV
8
  Bourdon
Principal
Rohrtloete
Octave
Nazard
Flachtloete
Tierce
Mixture
Trompette
Swell to Great
44 pipes Metal, tc stop
56 pipes Metal
56 pipes Wood and Metal
56 pipes Metal
56 pipes Metal
56 pipes Metal
56 pipes Metal
224 pipes Metal
56 pipes Metal

SWELL

8
8
8
4
4
2
1 1/3
8


  Gedeckt
Spitztloete
Gemshorn Celeste
Principal
Koppeltloete
Octave
Quint
Dulzian
Tremulant
56 pipes Wood and Metal
44 pipes Metal, 1-12 from Gedeckt
44 pipes Metal, tc stop
56 pipes Metal
56 pipes Metal
56 pipes Metal
56 pipes Metal
56 pipes Wood
designed to affect the entire organ.

PEDAL

16
8
8
4
16
8





  Subbass
Principal
Gedeckt
Octave
Fagott
Trompette
Swell to Pedal
Great to Pedal

30 pipes Wood
18 pipes Metal, 1-12 from Gt.
18 pipes Metal, 1-12 from Gt.
30 pipes Metal
30 pipes Metal
Common with Gt. Trompette 8'





CONSOLE
Attached console of the suspended type is built into the organ case. Manual keyboards are of cow bone and ebony. The pedal keyboard is of maple wood with walnut sharp keys and conforms to measurements of the American Institute of Organbuilders. All key action is mechanical. Suspended action with automatic compensation for variation in temperature and humidity are employed for the key action. A balanced swell expression pedal and music light are provided. Drawknobs are of turned Gaboon ebony. A solid state, capture type, combination action is provided with thirty-two levels of memory. Sforzando and Great to Pedal pistons and toe studs (reversible) are also provided. There are eight general pistons and three divisional pistons/toe studs for the combination action.


WINDCHESTS

Windchests are of the slider and pallet type. The stop and coupler action are controlled by electric solenoids with solid state controls.


WINDING
A new high speed organ blower is located within the organ case. A special silencing cabinet which houses the blower ensures quiet operation. A single bellows provides a sufficient yet slightly flexible supply of wind.

PIPEWORK
New pipework was fabricated by Aug. Laukhuff GmbH (Germany) and Russell and Company to specifications developed to provide the proper tonal characteristics in consideration of the acoustics of the church.


TONAL MATTERS
The scaling, voicing, tonal finishing were carried out in the best traditions of European and American organ building. Historical traditions of both organ performance and design, as well as choral accompaniment will be the prime considerations in the scaling, voicing and tonal finishing of the instrument. The organ will be tonally finished only in its final location to ensure an ideal balance of the tonal resources with the acoustics of the room.

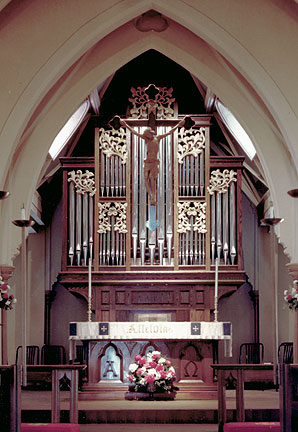

CASEWORK/PLACEMENT
The organ is housed in and behind a free standing case of red oak in traditional frame and panel style. Fac;ade pipes are of the 8' Principal and 4' Octave stops of polished zinc, and p
laned and polished 28% tin alloy. Hand-carved pipeshades of bass wood adorn the façade of the case.
